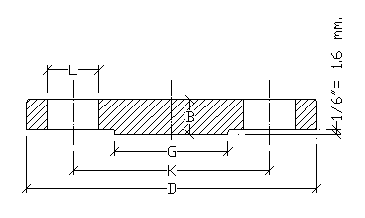

Diâmetro Nominal
|
Medidas Comuns
|
Peso Aproximado
|
|
D
|
G
|
M
|
B
|
Nº
|
L
|
K
|
|
pol.
|
mm.
|
mm.
|
mm.
|
mm.
|
Q. Furos
|
mm.
|
mm.
|
Kg.
|
|
1/2
|
95.2
|
34.9
|
38.1
|
14.3
|
4
|
15.9
|
66.7
|
0.9
|
|
3/4
|
117
|
42.9
|
47.6
|
15.9
|
4
|
19.0
|
82.6
|
1.4
|
|
1
|
124
|
50.8
|
54.0
|
17.5
|
4
|
19.0
|
88.9
|
1.4
|
|
1 1/4
|
133
|
63.5
|
63.5
|
19.0
|
4
|
19.0
|
98.4
|
1.8
|
|
1 1/2
|
156
|
73.0
|
69.8
|
20.6
|
4
|
22.2
|
114
|
2.7
|
|
2
|
165
|
92.1
|
84.1
|
22.2
|
8
|
19.0
|
127
|
3.6
|
|
2 1/2
|
190
|
105
|
100
|
25.4
|
8
|
22.2
|
149
|
5.4
|
|
3
|
210
|
127
|
117
|
28.6
|
8
|
22.2
|
168
|
7.3
|
|
3 1/2
|
229
|
140
|
133
|
30.2
|
8
|
22.2
|
184
|
9.5
|
|
4
|
254
|
157
|
146
|
31.8
|
8
|
22.2
|
200
|
12.2
|
|
5
|
279
|
186
|
178
|
34.9
|
8
|
22.2
|
235
|
15.9
|
|
6
|
318
|
216
|
206
|
38.5
|
12
|
22.2
|
270
|
22.7
|
|
8
|
381
|
270
|
260
|
41.3
|
12
|
25.4
|
330
|
36.7
|
|
10
|
444
|
324
|
321
|
47.6
|
16
|
28.6
|
387
|
56.7
|
|
12
|
483
|
381
|
375
|
50.8
|
16
|
31.8
|
451
|
83.9
|
|
14
|
584
|
413
|
425
|
54
|
20
|
31.8
|
514
|
113
|
|
16
|
648
|
470
|
483
|
57.2
|
20
|
34.9
|
572
|
134
|
|
18
|
711
|
533
|
533
|
60.3
|
24
|
34.9
|
329
|
179
|
|
20
|
775
|
584
|
587
|
63.5
|
24
|
34.9
|
686
|
229
|
|
24
|
914
|
692
|
702
|
69.8
|
24
|
41.3
|
813
|
358
|
|
